Business Rules

Business Rules are customizable rules that get executed at different lifecycle events on a sale in Vend. The logic in your business rules runs on your own server, and Vend will call out to your server to execute the rules. We call these Remote Rules since the logic does not exist within Vend.

To get started you need to register your Remote Rule endpoint in Vend via our API and create a Rule to trigger the Remote Rule.

This feature is currently in beta and you’ll need to let us know at api@vendhq.com if you’d like to either use or test it out.

Creating a Remote Business Rule

To create a Remote Rule you simply register the endpoint of your Remote Rule with Vend:

POST /api/2.0/workflows/remote_rules

In the payload you specify the URL of the Remote Rule on your server:

{
  "url": "https://mycompany.com/vend-business-rule"
}

As a response, you will get a RemoteRule object:

{
  "data": {
    "id": "238757382938758342",
    "url": "https://mycompany.com/vend-busniess-rule",
    "created_at": "2022-02-28T14:22:13Z"
  }
}

For more details see the Create Remote Rule documentation

Creating a Rule

While the Remote Rule is used to register your business rule endpoint in Vend, a Rule is used to associate the Remote Rule with a specific lifecycle event in Vend.

To create a Rule to trigger your Remote Rule simply create a Rule in Vend:

POST /api/2.0/workflows/rules

In the payload to specify the event that should trigger the Remote Rule and the ID of the Remote Rule:

{
  "event_type": "sale.ready_for_payment",
  "remote_rule_id": "238757382938758342"
}

As a response, you will get a Rule object:

{
  "data": {
    "id": "938484920947573",
    "event_type": "sale.ready_for_payment",
    "remote_rule_id": "238757382938758342",
    "created_at": "2022-02-28T14:23:26Z"
  }
}

For more details see the Create Rule documentation

Remote Business Rule API

Now that you have registered your Remote Rule in Vend and created a Rule to trigger it, Vend will call your end-point every time the sale.ready_for_payment event occurs.

A Remote Rule is called via an HTTP JSON POST request at the URL registered.

The Remote Rule is sent information about the event that is happening and can respond with a list of actions to instruct Vend how to proceed.

The payload for an event always has the event_type and retailer. Depending on the event type, the payload will have additional fields describing the context of the event.

As a response to the request, the Remote Rule must return a list of actions for Vend to perform.

Actions

Action Type Description Properties
stop Prevent the event from continuing. title: The title of the modal.
Default: ””

message: The message of the modal.

dismiss_label: The label of the OK button on the modal.
Default: ”OK”
confirm Ask the user to confirm that they want to proceed. title: The title of the modal.
Default: ””

message: The message of the modal.

confirm_label: The label on the button to proceed with the event.
Default: "Continue"

dismiss_label: The label on the button to not proceed with the event.
Default: "Cancel"
require_custom_fields Ask the user to enter values for custom fields. title: The title of the modal.
Default: ””

message: The message of the modal.

entity: The type of entity you want to set a custom field on. Must be either sale or line_item.

entity_id: The ID of the entity that you want to set the custom field on. This is only required when setting a custom field on a line item.

required_custom_fields: The custom fields that are required.
set_custom_field Set value for a custom field. entity: The type of entity you want to set a custom field on. Must be either sale or line_item.

entity_id: The ID of the entity that you want to set the custom field on. This is only required when setting a custom field on a line item.

custom_field_name: The name of the custom field that you are setting value of.

custom_field_value: The value that you want to set on the custom field.
add_line_item Add a line item to the sale. product_id: The ID of the product that you want to add.

product_sku: The SKU of the product that you want to add.

quantity: The quantity of the product that you want to add.
Default: "1"

unit_price: Use this to override the price of 1 unit of the product.
Default: The default unit price of the product.

Note: You must specify either the product_id or product_sku, not both.
remove_line_item Remove a line item from the sale line_item_id: The ID of the line item that you want to remove.

The stop Action

An example response payload with a stop action looks like this:

{
  "actions": [
    {
      "type": "stop",
      "title": "No sale of alcohol to minors",
      "message": "The customer must be at least 21 years old to buy alcohol.",
      "dismiss_label": "OK"
    }
  ]
}

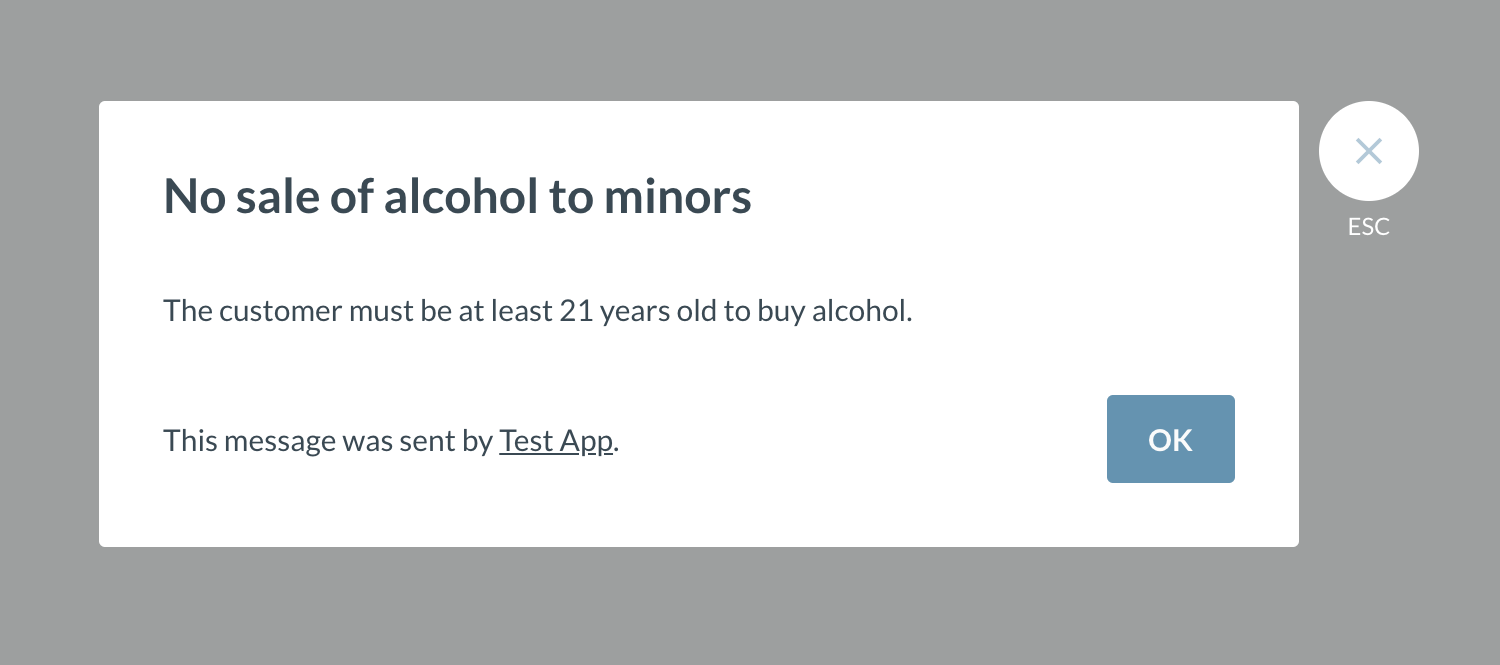

This action would produce a popup on the screen like this:

The confirm Action

An example response payload with a confirm action looks like this:

{
  "actions": [
    {
      "type": "confirm",
      "title": "✋ ID Check",
      "message": "Please confirm than you have checked to ID of the customer.",
      "confirm_label": "Done",
      "dismiss_label": "Cancel"
    }
  ]
}

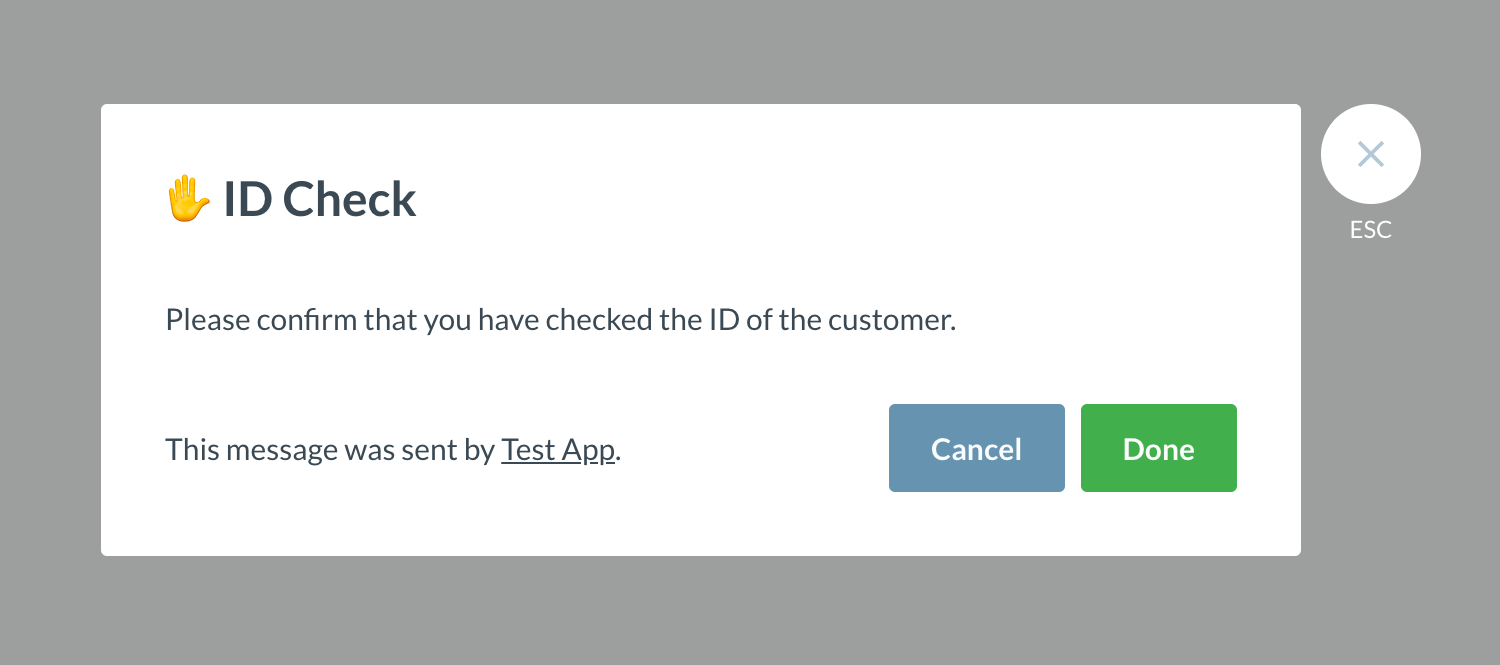

This action would produce a popup on the screen like this:

The require_custom_fields Action

An example response payload with a require_custom_fields action looks like this:

{
  "actions": [
    {
      "type": "require_custom_fields",
      "title": "We need some information about this return",
      "message": "Please explain why this item is being returned",
      "entity": "line_item",
      "entity_id": "cc0e2f8f-3c14-ac66-11ea-9e2e4fefb804",
      "required_custom_fields": [
        {
          "name": "return-reason",
          "values": [
            {
              "value": "broken",
              "title": "The item is broken"
            },
            {
              "value": "wrong-size",
              "title": "The item does not fit"
            },
            {
              "value": "other",
              "title": "Other (Please describe below)"
            }
          ]
        },
        {
          "name": "return-note"
        }
      ]
    }
  ]
}

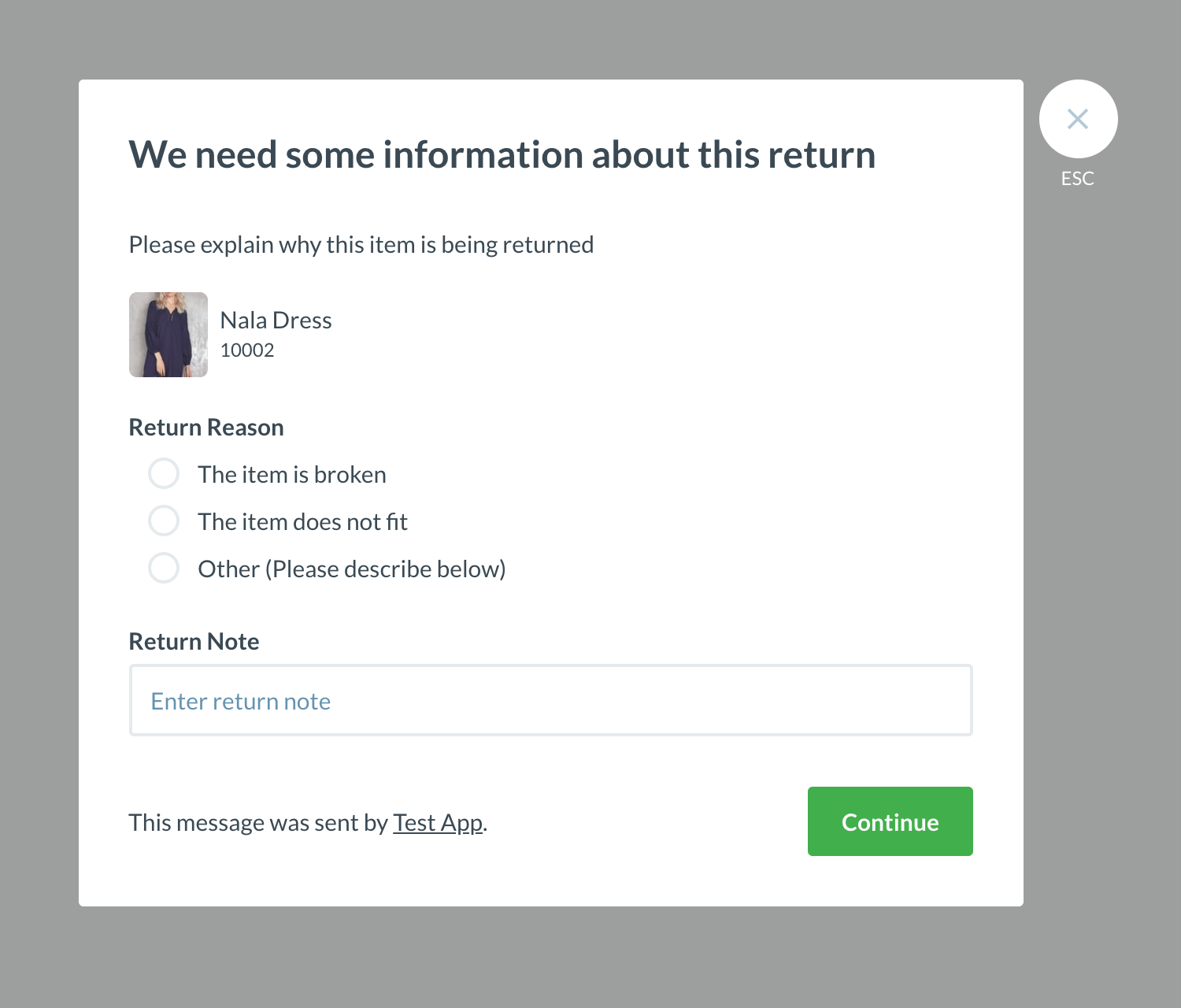

This action would produce a popup on the screen like this:

The set_custom_field Action

An example response payload with a set_custom_field action looks like this:

{
  "actions": [
    {
      "type": "set_custom_field",
      "entity": "sale",
      "custom_field_name": "contains-alcohol",
      "custom_field_value": true
    }
  ]
}

The add_line_item Action

An example response payload with a add_line_item action that adds a product by ID, looks like this:

{
  "actions": [
    {
      "type": "add_line_item",
      "product_id": "0242ac12-0002-11e9-e8c4-659494e33153"
    }
  ]
}

Alternatively, you can add a product by SKU:

{
  "actions": [
    {
      "type": "add_line_item",
      "product_sku": "bottle-deposit"
    }
  ]
}

You can optionally set the quantity and unit price as well:

{
  "actions": [
    {
      "type": "add_line_item",
      "product_id": "0242ac12-0002-11e9-e8c4-659494e33153",
      "quantity": "2.4",
      "unit_price": "3.75"
    }
  ]
}

The remove_line_item Action

An example response payload with a remove_line_item action looks like this:

{
  "actions": [
    {
      "type": "remove_line_item",
      "line_item_id": "0242ac12-0002-11e9-e8c4-659494e33153"
    }
  ]
}

Event types

Different events are triggered by Vend during the lifecycle of a sale. Currently, we support the following events:

sale.ready_for_payment

The sale.ready_for_payment is triggered by the register when transitioning to the payment screen.

Payload

The payload sent to you when this event occours, has the folowing contents:

Key Description
event_type The type of event. In this case: sale.ready_for_payment
retailer The retailer the event happened on.
user The cashier who triggered the event.
sale The sale that is transitioning to the payment screen.
customer The customer associated with the sale.

Allowed actions

The sale.ready_for_payment event supports these actions:

Action Description
stop Don’t transition to the payment screen.
confirm Ask the cashier for confirmation that we should procceed to the payment screen.
require_custom_fields Ask the cashier for values of custom fields.
set_custom_field Set a custom field.
add_line_item Add a line item.
remove_line_item Remove a line item.

sale.line_items.added

The sale.line_items.added is triggered by the register when line items are added to a sale.

Payload

The payload sent to you when this event occours has the folowing contents:

Key Description
event_type The type of event. In this case: sale.line_items.added
retailer The retailer the event happened on.
user The cashier who triggered the event.
sale The sale that is had the line items added.
customer The customer associated with the sale.
line_items The line items that were added.

An example request payload for a sale.line_items.added event looks like this:

{
  "event_type": "sale.line_items.added",
  "retailer": {
    "id": "b1ed6158-f019-11e3-a0f5-b8ca3a64f8f4",
    "domain_prefix": "company"
  },
  "user": {
    "id": "08002782-0c90-11e6-e3ed-117ec127b1ca",
    "username": "Admin",
    "email": null,
    "account_type": "admin"
  },
  "sale": {
    "outlet_id": "0242ac12-0002-11e9-e8c4-659494dde2eb",
    "register_id": "0242ac12-0002-11e9-e8c4-659494ddca3d",
    "note": "Sale Note",
    "total_price": "69.56521739130434",
    "total_tax": "10.43478260869565",
    "custom_fields": [
      {
        "definition_id": "1247745546911297536",
        "name": "age_verified",
        "boolean_value": true
      }
    ],
    "line_items": [
      {
        "id": "cc0e2f8f-3c14-974a-11ea-67fafc89e3ff",
        "product": {
          "id": "0242ac12-0002-11e9-e8c4-659494e33153",
          "custom_fields": [
            {
              "definition_id":"1249847800380837242",
              "name": "requires_age_verification",
              "boolean_value": true
            }
          ]
        },
        "quantity": "1",
        "note": "Line Item Note",
        "price": "34.78260869565217",
        "price_total": "34.78260869565217",
        "tax_total": "5.217391304347825",
        "custom_fields": [
          {
            "definition_id":"1249847800380837888",
            "name": "serial",
            "string_value": "SN3847sj-34"
          }
        ]
      },
      {
        "id": "cc0e2f8f-3c14-974a-11ea-6896792dfeae",
        "product": {
          "id": "0242ac11-0002-11ea-f7e1-629be820260d",
          "custom_fields": []
        },
        "quantity": "1",
        "note": "Line Item Note",
        "price": "34.78260869565217",
        "price_total": "34.78260869565217",
        "tax_total": "5.217391304347825",
        "custom_fields": []
      }
    ]
  },
  "customer": {
    "id": "0242ac11-0002-11ea-f7e1-629be9455e72",
    "first_name": "Anthony",
    "last_name": "Stark",
    "customer_code": "Tony-N4ZJ",
    "customer_group_id": "28020918-a068-aae4-11e9-cad0d05570c9",
    "email": "tony@stark.com",
    "phone": "123 456 7890",
    "mobile": "123 456 7890",
    "fax": "123 456 7890",
    "do_not_email": true,
    "note": "Customer Note",
    "date_of_birth": "1963-03-03",
    "year_to_date": "0",
    "balance": "0",
    "loyalty_balance": "0",
    "created_at": "2020-03-10T06:53:56+00:00",
    "enable_loyalty": false,
    "custom_field_1": "Custom data one",
    "custom_field_2": null,
    "custom_field_3": null,
    "custom_field_4": null
  },
  "line_items": [
    {
      "id": "cc0e2f8f-3c14-974a-11ea-6896792dfeae",
      "product": {
        "id": "0242ac11-0002-11ea-f7e1-629be820260d",
        "custom_fields": []
      },
      "quantity": "1",
      "note": "Line Item Note",
      "price": "34.78260869565217",
      "price_total": "34.78260869565217",
      "tax_total": "5.217391304347825",
      "custom_fields": []
    }
  ]
}

Allowed actions

The sale.line_items.added event supports these actions:

Action Description
require_custom_fields Ask the cashier for values of custom fields.
set_custom_field Set a custom field.
add_line_item Add a line item.
remove_line_item Remove a line item.
